Boxes

BN14155W-UL
Surface Mount Service Box


14-¾” wide x 15” tall x 5-¾” deep

(Weight – 18 lbs.)

This is a very versatile exterior service box that can be either semi-flush mounted during construction or added as a surface mount after construction is complete. It is ideal for communication utilities, irrigation and alarm systems when outside access is required. It has 2 knockouts 2” - 2½” (for 1¾” - 2¼” conduit) & 3 knockouts 1⅜ (for 1¼” conduit). Inside is a ¾” plywood backboard for equipment mounting. This box has an 18-gauge body and 16-gauge door that locks with a standard can wrench tool. This box is finished with a powder coat desert tan color that can be painted to match the exterior building. This box is UL-Listed and designed to NEMA 3R. No markings on the door, labels are available.


BN5230W-UL
Surface Mount Service Box


d

14” wide x 25” high x 6-7/8” deep

(Weight - 32 lbs.)

This is an exterior distribution box that can be used for communication hubs with telephone, computer, cable television and alarm system applications. This box is surface-mounted on an existing construction project or used in concrete tilt-up projects. It is made of 16 gauge zinc-coated steel with a desert tan powder coat finish. The hinged lid is locked with a standard can wrench. This is a fully enclosed box with three multiple 1” to 2” knockouts on the bottom. It is also NEMA 3R rated and UL listed and has a 3/4” plywood backboard. Optional key locks and hasps are available.


BN14244W-SM
Surface-Mount Exterior Enclosure


14” wide x 24” high x 4” deep

(Weight - 26 lbs.)

This surface mount cabinet can be attached to a variety of surfaces. The cabinet is fully enclosed and has a hinged door with a standard hex-head latch. It is constructed from 16 gauge zinc-coated steel with a durable tan finish. Knockouts on the bottom include three multiple 3/4” to 1-1/4” and two 3/4” to 1-3/4”. It also includes a 1/2” plywood backboard, a four-position ground bar and “Communications” embossed on the cover.


BN14324W-SM
Surface-Mount Exterior Enclosure


14” wide x 32” high x 4” deep

(Weight - 31 lbs.)

This surface mount cabinet can be attached to a variety of surfaces. The cabinet is fully enclosed and has a hinged door with a standard hex-head latch. It is constructed from 16 gauge zinc-coated steel with a durable tan finish. Knockouts on the bottom include three multiple 3/4” to 1-1/4” and two 3/4” to 1-3/4”. It also includes a 1/2” plywood backboard, a four-position ground bar and “Communications” embossed on the cover.


BN14326W-SM
Surface-Mount Exterior Enclosure


14-1/2” wide x 32” tall x 6” deep

(Weight - 33 lbs.)

This surface mount cabinet can be attached to a variety of surfaces. The cabinet is fully enclosed and has a hinged door with a standard hex-head latch. It is constructed from 16 gauge zinc-coated steel with a durable tan finish. Knockouts on the bottom include three multiple 3/4” to 1-1/4” and two 3/4” to 1-3/4”. It also includes a 1/2” plywood backboard, a four-position ground bar and “Communications” embossed on the cover.



BN24268W-UL
Exterior Surface-Mounted Enclosure


24” wide x 26” high x 8” deep

(Weight - 50 lbs.)

This enclosure is an exterior distribution box that can be used for communication hubs with telephone, computer, cable television and alarm system applications. This box is surface-mounted on an existing construction project or used in concrete tilt-up projects. It is made of 16 gauge  zinc-coated steel with a desert tan powder coat finish. The hinged lid locks with a standard can wrench. This is a fully enclosed box with two multiple 1-1/2” to 2” and ten 1” to 1-1/4” knockouts on the bottom. It is also NEMA 3R rated, UL listed and includes a four-position ground bar mounted inside. Optional key locks and hasps are available.


BN30368W-UL
Exterior Surface-Mounted Enclosure


30” wide x 36” high x 8” deep

(Weight - 80 lbs.)

This is principally an exterior distribution box that can be used for communication hubs with telephone, computer, cable television and alarm system applications. This box is surface-mounted on an existing construction project or used in concrete tilt-up projects. It is made of 14 gauge  zinc-coated steel with a desert tan powder coat finish. The reinforced hinged lid is locked with a standard can wrench. This is a fully enclosed box with two multiple 1-1/2” to 3” and ten 1” to 1-1/4” knockouts on the bottom. It is also NEMA 3R rated and UL listed. It also includes a 3/4” plywood backboard and a four-position ground bar mounted inside.


BN30369W-UL
Exterior Surface-Mounted Enclosure


30” wide x 36” high x 9” deep

(Weight - 87 lbs.)

This enclosure is an exterior distribution box that can be used for communication hubs with telephone, computer, cable television and alarm system applications. This box is surface-mounted on an existing construction project or used in concrete tilt-up projects. It is made of 14 gauge  zinc-coated steel with a desert tan powder coat finish. The reinforced hinged lid is locked with a standard can wrench. This is a fully enclosed box with two multiple 1-1/2” to 3” and ten 1” to 1-1/4” knockouts on the bottom. It is also NEMA 3R rated and UL listed. It also includes a 3/4” plywood backboard and a four-position ground bar mounted inside. Optional key locks and hasps are available.


BN30369WS-UL
Exterior Surface-Mounted Enclosure


30” wide x 36” high x 9” deep

(Weight - 84 lbs.)

This enclosure is an exterior distribution box that can be used for communication hubs with telephone, computer, cable television and alarm system applications. This box is surface-mounted on an existing construction project or used in concrete tilt-up projects. It is made of 14 gauge  zinc-coated steel with a desert tan powder coat finish. The reinforced hinged lid is locked with a standard can wrench. This is a fully enclosed box with two multiple 1-1/2” to 3” and ten 1” to 1-1/4” knockouts on the bottom. It is also NEMA 3R rated and UL listed. It also includes a 3/4” plywood backboard and a four-position ground bar mounted inside and a built in splice chamber.


BN36368W-UL
Exterior Surface-Mounted Enclosure


36” wide x 36” high x 8” deep

( Weight - 99 lbs.)

This is principally an exterior distribution box that can be used for communication hubs with telephone, computer, cable television and alarm system applications. This box is surface-mounted on an existing construction project or used in concrete tilt-up projects. It is made of 14 gauge  zinc-coated steel with a desert tan powder coat finish. The reinforced hinged lid is locked with a standard can wrench. This is a fully enclosed box with two multiple 1-1/2” to 3” and ten 1” to 1-1/4” knockouts on the bottom. It is also NEMA 3R rated and UL listed. It also includes a 3/4” plywood backboard and a four-position ground bar mounted inside. Optional key locks and hasps are available.


BN36369W-UL
Exterior Surface-Mounted Enclosure


36” wide x 36” tall x 9” deep

(Weight - 101 lbs.)

This is principally an exterior distribution box that can be used for communication hubs with telephone, computer, cable television and alarm system applications. This box is surface-mounted on an existing construction project or used in concrete tilt-up projects. It is made of 14 gauge  zinc-coated steel with a desert tan powder coat finish. The reinforced hinged lid is locked with a standard can wrench. This is a fully enclosed box with two multiple 1-1/2” to 3” and ten 1” to 1-1/4” knockouts on the bottom. It is also NEMA 3R rated and UL listed. It also includes a 3/4” plywood backboard and a four-position ground bar mounted inside.


BN38369WS-UL
Exterior Surface-Mounted Enclosure


38” wide x 36” high x 9” deep

(Weight - 111 lbs.)

This exterior distribution box with splice compartment can be used for communication hubs with telephone, computer, cable television and alarm system applications. This box is surface-mounted on an existing construction project or used in concrete tilt-up projects. It is made of 14 gauge  zinc-coated steel with a desert tan powder coat finish. The reinforced hinged lid is locked with a standard can wrench. This is a fully enclosed box with two multiple 1-1/2” to 3” and ten 1” to 1-1/4” knockouts on the bottom. It is also NEMA 3R rated and UL listed. It also includes a 3/4” plywood backboard and a four-position ground bar mounted inside.

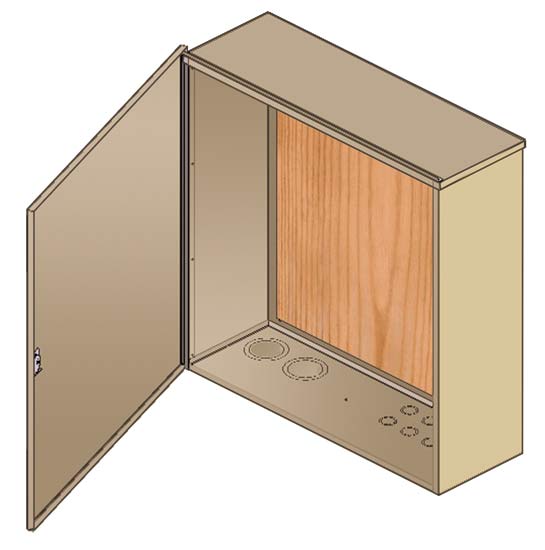

BN363612W-UL
Exterior Surface-Mounted Enclosure


36” wide x 36” tall x 12” deep

(Weight - 113 lbs.)

This is principally an exterior distribution box that can be used for communication hubs with telephone, computer, cable television and alarm system applications. This box is surface-mounted on an existing construction project or used in concrete tilt-up projects. It is made of 14 gauge  zinc-coated steel with a desert tan powder coat finish. The reinforced hinged lid is locked with a standard can wrench. This is a fully enclosed box with two multiple 1-1/2” to 3” and ten 1” to 1-1/4” knockouts on the bottom. It is also NEMA 3R rated and UL listed. It also includes a 3/4” plywood backboard and a four-position ground bar mounted inside.

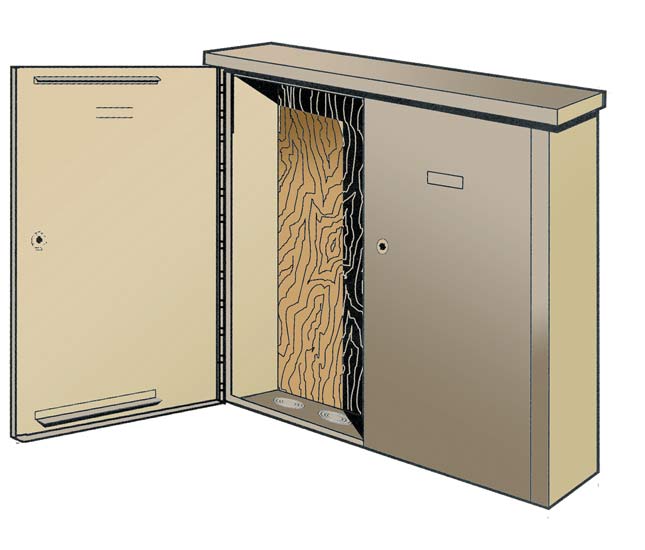

BN48489W-UL
Exterior Surface-Mounted Enclosure


48” wide x 48” high x 9” deep

(Weight - 190 lbs.)

This is principally an exterior distribution box that can be used for communication hubs with telephone, computer, cable television and alarm system applications. This box is surface-mounted on an existing construction project or used in concrete tilt-up projects. It is made of 14 gauge  zinc-coated steel with a desert tan powder coat finish. The reinforced hinged lid is locked with a standard can wrench. This is a fully enclosed box with two multiple 1-1/2” to 3” and ten 1” to 1-1/4” knockouts on the bottom. It is also NEMA 3R rated and UL listed. It also includes a 3/4” plywood backboard and a four-position ground bar mounted inside.


BN48489WS-UL
Exterior Surface-Mounted Enclosure


48” wide x 48” high x 9” deep

(Weight - 190 lbs.)

This is principally an exterior distribution box that can be used for communication hubs with telephone, computer, cable television and alarm system applications. This box is surface-mounted on an existing construction project or used in concrete tilt-up projects. It is made of 14 gauge  zinc-coated steel with a desert tan powder coat finish. The reinforced hinged lid is locked with a standard can wrench. This is a fully enclosed box with two multiple 1-1/2” to 3” and ten 1” to 1-1/4” knockouts on the bottom. It is also NEMA 3R rated and UL listed. It also includes a 3/4” plywood backboard and a four-position ground bar mounted inside.This enclosure includes a built in splice chamber.
