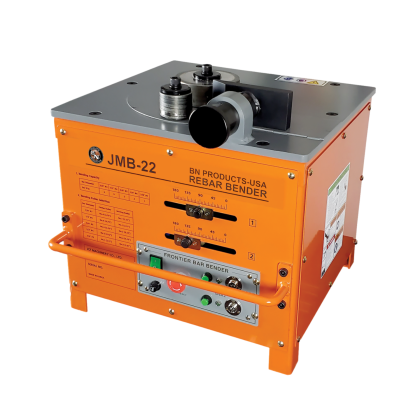

JMB-22 Table-Style #7 Rebar Bender
JMB-22 w/ Pedals (Included)
JMB-22 Front Panel/Top View
JMB-22 Top View
PRODUCT SUMMARY
The JMB-22 Rebar Bender is a heavy-duty table top rebar bending tool that is a great addition to the extensive line of BN Products USA™ rebar tools! In addition to the great features, the JMB-22 ships with a stand, roller kit, and two (2) foot pedals!
- The JMB-22 features a preset angle lock for repeating the same angle bends; accurately bends any angle from 0-180 degrees
- Bends (4 bars) #3 rebar, (3 bars) #4; (2 bars) #5 or #6 rebar and (1 bar) #7 rebar at one time

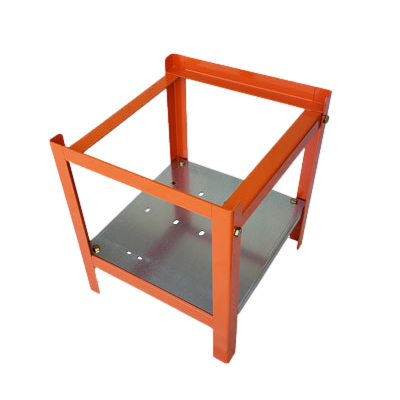

- The JMB-22 comes complete with heavy-duty stand for the machine, bending rollers, steel carrying case, tool kit, standard foot pedal control switch, and a one-year warranty.
- Designed for: No. 7, grade 60, rebar bending capacity, meets ACI 318-05.
PRODUCT LINKS
- Operator Manual CLICK HERE
- Printable roller selection bending chart CLICK HERE
- Printable Literature Sheet CLICK HERE
- Parts Guide CLICK HERE
Close
BUY ONLINE | Available Now from these Distributors
| Maximum rebar diameter: | #7 (7/8") (22mm) Grade 60 |
| Bending Angle: | 0 – 180 degrees |
| Bending Speed: | 9 Seconds for 180 degree bend |
| Power Supply: | 115V 50/60Hz -15 amps |
| Weight (kg): | 219 lbs. (99.4 kg) |
| Overall Dimensions (mm): | 21 1/2" (546mm) with handles x 18 3/8" (467mm) x 18 1/4" (464mm) to top of moving roller |
