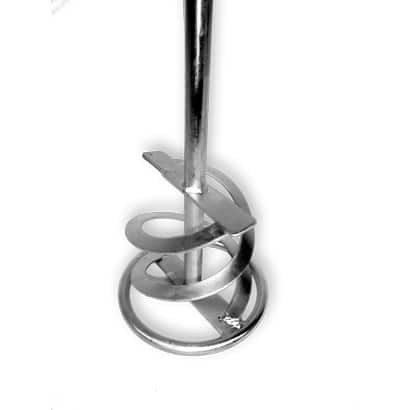

Paddle Mixer Accessories

BNR001-120, BNR001-140 and BNR001-160

Diameter 120 mm (4.75") or 140 mm (5.50") or 160mm (6.25")
Overall length 60 cm (24")
Designed for plasters, adhesive mortars, mortars,
tile adhesives and fillers, best for sticky and viscous
materials; Material Flow Bottom to Top
Connection M14 x 2 male threads.

BNR002-57

Diameter 57 mm (2.25")
Overall length 13.5"
Designed for paints, lacquers, thin coatings, and
ready-mix plaster. Use on BN6169 or drill.
Material Flow Top to Bottom
Connection 5/16" hex shank.

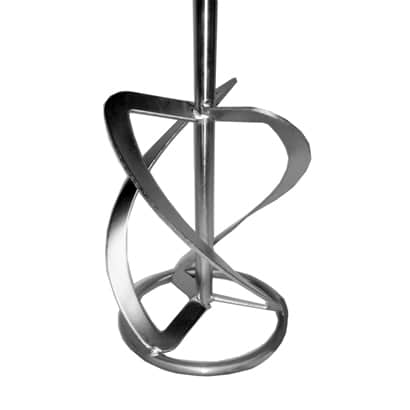

BNR003-120, BNR003-140, and BNR003-160

Diameter 120 mm (4.75") or 140 mm (5.5") or 160 mm (6.25")
Overall length 60 cm (24")
Designed for concrete, mortars, plasters, heat-insulating
plasters, and epoxy resin with sand, best for heavy and high viscosity materials.
Material Flow Top to Bottom
Connection M14 x 2 male threads.

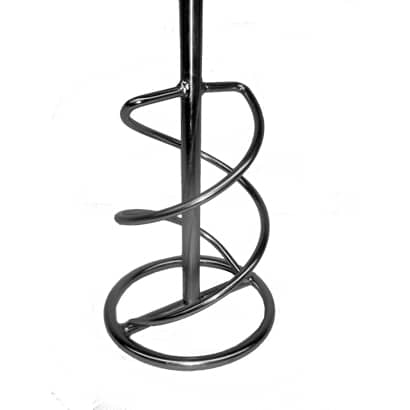

BNR004-120 and BNR004-140

Diameter 120 mm (4.75") or 140 mm (5.50")
Overall length 60 cm (24")
Designed for thinset, tile adhesive, grout, adhesive mortars,
ready-mix mortars, pointing mortars, and fillers, best for small
volumes on high speed mixers.
Material Flow Bottom to Top
Connection M14 x 2 male threads

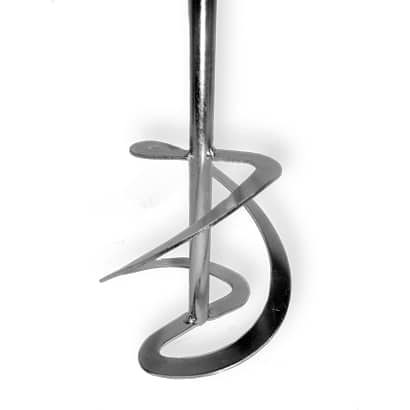

BNR005-120

Diameter 120 mm (4.75") or 140 mm (5.50")
Overall length 60 cm (24")
Designed for plasters, adhesive mortars, tile adhesive and
fillers, best for sticky and viscous materials.
Material Flow Bottom to Top
Connection M14 x 2 male threads

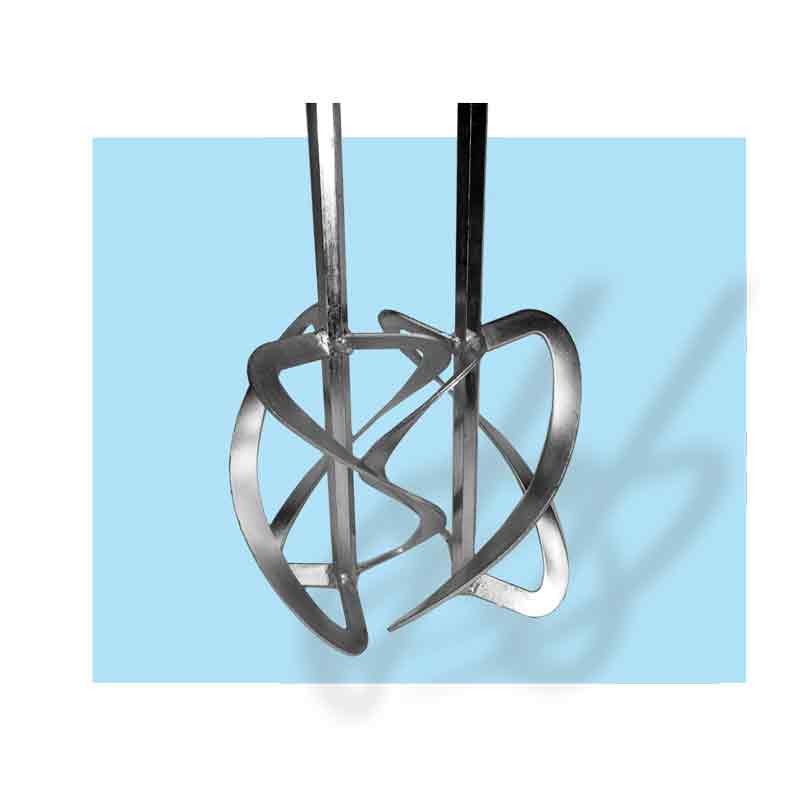

BNR008-120K

Diameter 140 mm (4.75")
Overall length 60 cm (24")
Designed for concrete, cement, mortars, and grouts with
aggregate less than 3/8" diameter. Also for gypsum lime
plaster, fibrated aluminum roof coatings and paints.
Not for highly viscous materials. Sold in pairs for the
double mixer.
Material Flow Top to Bottom
Connection 13 mm or ½" Hex Shank, for BNR6402K mixer

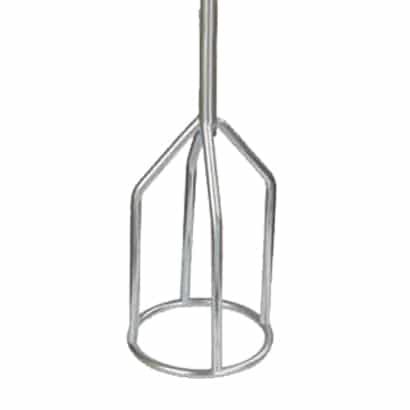

BNR009-120 and BNR009-140

Diameter 120 mm (4.75") or 140 mm (5.50")
Overall length 60 cm (24")
Designed for fillers, bitumen coatings, joint cement,
epoxy-resin compounds, and grouting compounds,
best for prevention of lump formation and lessens
adding air into the mixture.
Material Flow Parallel
Connection M14 x 2 male threads.

BNR010-120 and BNR010-140

Diameter 120 mm (4.75") or 140 mm (5.50")
Overall length 60 cm (24")
Designed for gypsum-lime plaster, fibrated aluminum
roof coatings, and paints. This paddle can be disassembled
in two pieces and fit into a carrying case.
Material Flow Top to Bottom
Connection M14 x 2 male threads.

BNR012-160: Standard Replacement Paddle for BNR6500 Power Mixer

• Diameter 160 mm (6-1/4")
• Designed for: Concrete, Thermal insulating plasters, Epoxy Resin with sand
• Material Flow: Bottom to Top
• Connection: M14 x 2 male threads
• Length: 60 mm (24")

BNR013-120: Standard Replacement Paddle (Pair) for BNR6502 Double-Paddle Power Mixer

• Diameter 120 mm (4-3/4") X 2
• Designed for: Concrete, Cement, Grouts (aggregate < 3/8");
not for high-viscosity materials
• Material Flow: Top to Bottom
• Connection: 13 mm or ½” Hex Shank
• This paddle set sold in pairs (L/R)
